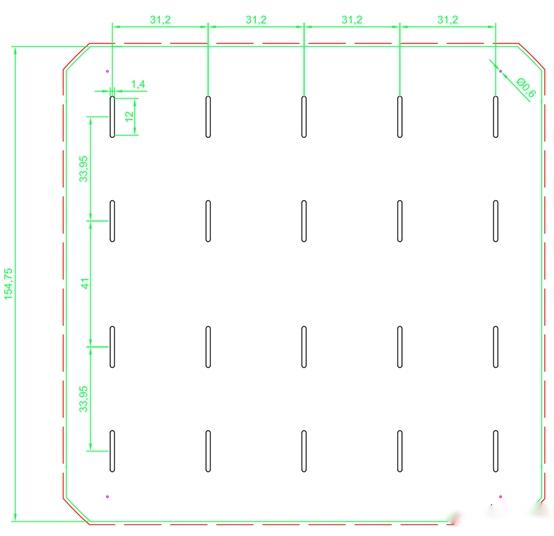

1. Conventional solar cell  1-pass printing screen - back electrode with chamfer

Screen mesh size: 280

Mesh wire diameter: 25um

Yarn thickness: 40um

Film thickness: 8±2um

Net stretch angle: 22.5deg

Tension: 26±1.5N/cm

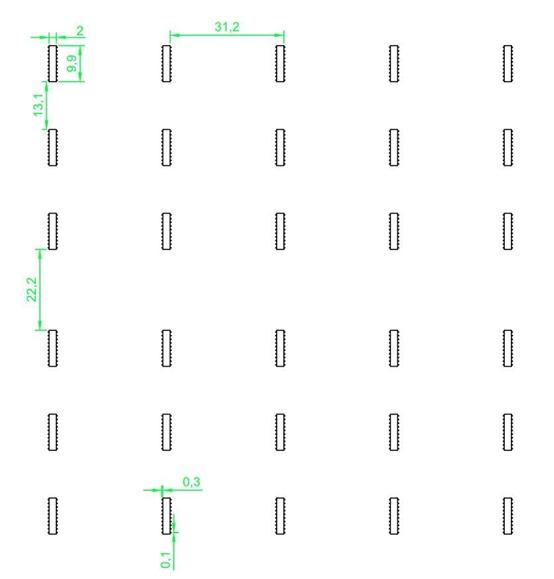

2. Conventional square cell 1-pass printing screen-back electrode

Screen mesh size: 280

Mesh wire diameter: 25um

Yarn thickness: 40um

Film thickness: 8±2um

Net stretch angle: 22.5deg

Tension: 26±2N/cm

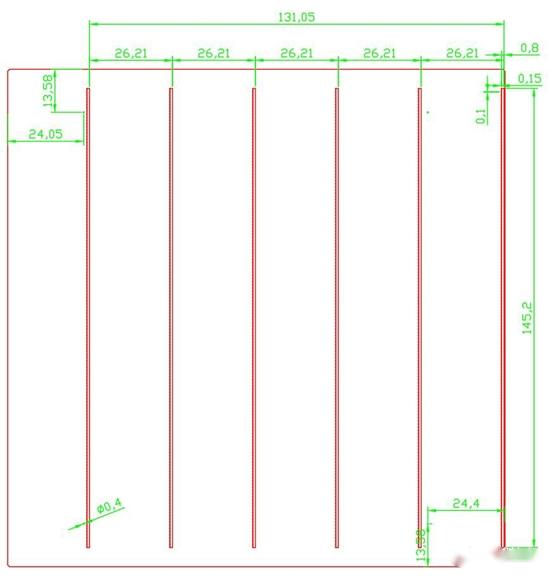

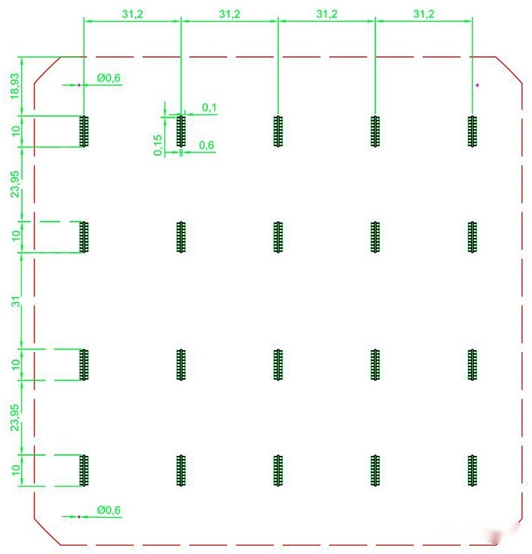

3. Conventional square cell 1-pass printing screen-back electrode

Screen mesh size: 325

Screen wire diameter: 23 um

Yarn thickness: 38±2 um

Film thickness: 8 ±2um

Net stretch angle: 22.5 deg

Tension: 25 ± 2 N/cm

Back electrode spacing: 26.210±0.015mm

Distance between front and back electrodes: 131.05±0.025mm

4. Conventional single-sided cell 2-pass printing screen - back electric field with chamfer

Screen mesh size: 400

Screen wire diameter: 23 um

Yarn thickness: 27±2 um

Film thickness: 12±2um

Net stretch angle: 22.5 deg

Tension: 26 ± 2 N/cm

In-chip tension: <3N (extremely poor)

5. Conventional double-sided solar cell 2-pass printing screen - back electric field with chamfer

Screen mesh size: 360

Mesh wire diameter: 16um

Yarn thickness: 28um

Film thickness: 20±2um

Net stretch angle: 22.5deg

Tension: 24±2N/cm

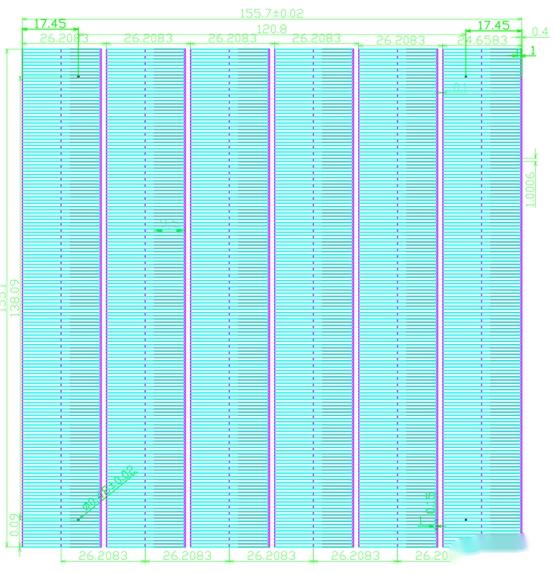

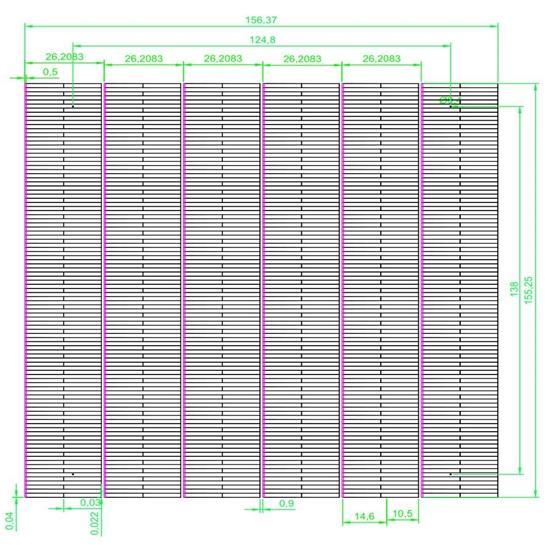

6. Conventional double-sided square cell 2-pass printing screen - back electric field

Screen mesh size: 360

Screen wire diameter: 16 um

Yarn thickness: 28±2um

Film thickness: 20±2um

Total thickness: 48±2um

Net stretch angle: 22.5 deg

Tension: 24 ± 2 N/cm

Back field spacing: 26.2083±0.015mm

Mark point size: 0.48±0.020mm

Squeegee surface thickening: 5 um

Back field head to tail distance (peripheral top to top): 155.70±0.02mm

PT value: 155.1±0.02mm

PT value description: PT value refers to the distance between the top grid line and the bottom grid line on the periphery of the screen. (Other standard tolerance ±0.02mm)

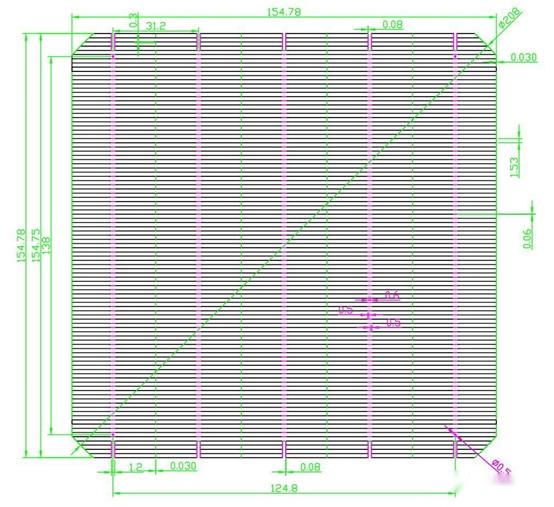

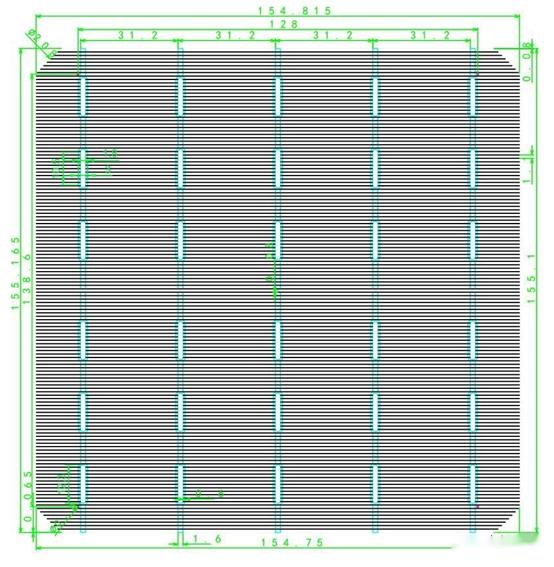

7. Conventional solar cell cell 3-pass printing screen - front grid with chamfer

Number of fine grids: 102

Fine gate width: 23± 2 um

Bold line width: 60± 2 um

Graphic alienation length: 0.3±0.01mm

Screen mesh size: 380

Wire diameter: 14um

Yarn thickness: 17 um

Film thickness: 11± 2 um

Net stretch angle: 30 deg

Tension: 20 ± 2 N/cm

PT value: 154.720 ± 0.02 mm

PT value description: PT value refers to the distance between the top grid line and the bottom grid line on the periphery of the screen.

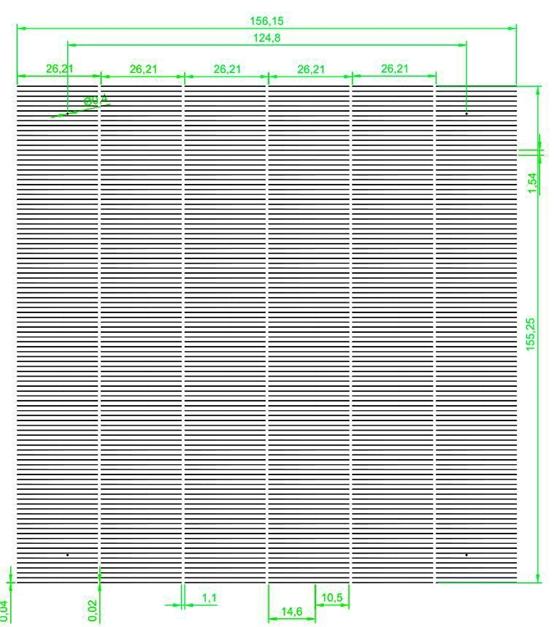

8. Conventional square cell 3-pass printing screen-positive screen

Number of fine grids: 102

Fine gate width: 22± 2 um

Bold line width: 40± 2 um

Screen mesh size: 380

Wire diameter: 14um

Yarn thickness: 17 um

Film thickness: 11± 2 um

Total thickness: 32.5± 2 um

Net stretch angle: 30 deg

Tension: 20 ± 2 N/cm

PT value: 155.220 ± 0.02 mm

PT value description: PT value refers to the distance between the top grid line and the bottom grid line on the periphery of the screen.

9. Conventional solar cell cell 4-pass printing screen - front grid with chamfer

Number of fine grids: 102

Fine gate width: 24± 2 um

Bold line width: 60± 2 um

Screen mesh size: 380

Wire diameter: 14um

Yarn thickness: 17 um

Film thickness: 11± 2 um

Total thickness: 32.5± 2 um

Net stretch angle: 30 deg

Tension: 20 ± 2 N/cm

PT value: 154.730 ± 0.02 mm

PT value description: PT value refers to the distance between the top grid line and the bottom grid line on the periphery of the screen.

10. Conventional square cell 4-pass printing screen-positive screen

Number of fine grids: 102

Fine gate width: 22± 2 um

Bold line width: 40± 2 um

Screen mesh size: 380

Wire diameter: 14um

Yarn thickness: 17 um

Film thickness: 13± 2 um

Total thickness: 34.5± 2 um

Net stretch angle: 30 deg

Tension: 20 ± 2 N/cm

PT value: 155.230 ± 0.02 mm

PT value description: PT value refers to the distance between the top grid line and the bottom grid line on the periphery of the screen.
