Southwest Petroleum University Science: Gas Chromatography-mass Spectrometry Analysis of Encapsulate

Southwest Petroleum University Science: Gas Chromatography-mass Spectrometry Analysis of Encapsulate
Mar 25, 2025

The energy conversion efficiency of perovskite solar cells (PSCs) has increased from 3.8% to 25.2% and beyond in 10 years, but their commercialization is limited by instability. Researchers have developed a low-cost polymer/glass tandem packaging solution that enables PSCs to pass IEC 61215 standard damp heat and humidity freeze tests. These tests determine whether perovskite solar cells can withstand the effects of outdoor operating conditions through repeated temperature cycles (-40°C to 85°C) and 85% relative humidity.

A low-cost polymer/glass tandem encapsulation scheme enables stable perovskite solar cells to pass the requirements of DH and HF Test in IEC 61215. Unencapsulated and encapsulated perovskite cells were analyzed by gas chromatography-mass spectrometry, and the characteristic volatile products of organic perovskite hybrid decomposition under thermal stress were detected, confirming the effectiveness of the developed low-cost compact polymer/glass tandem encapsulation scheme.

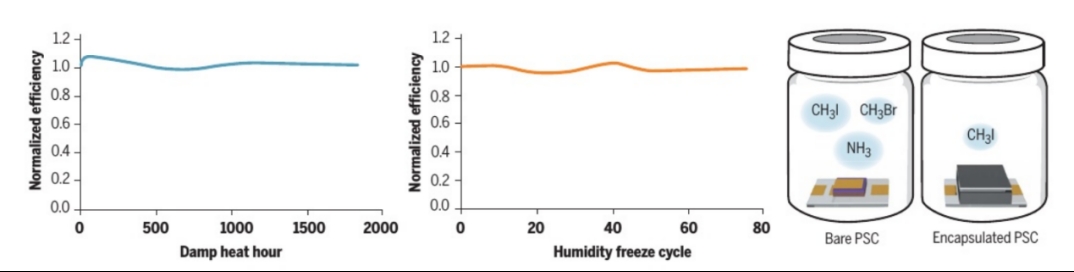

Performance changes in DH and HF tests according to IEC 61215

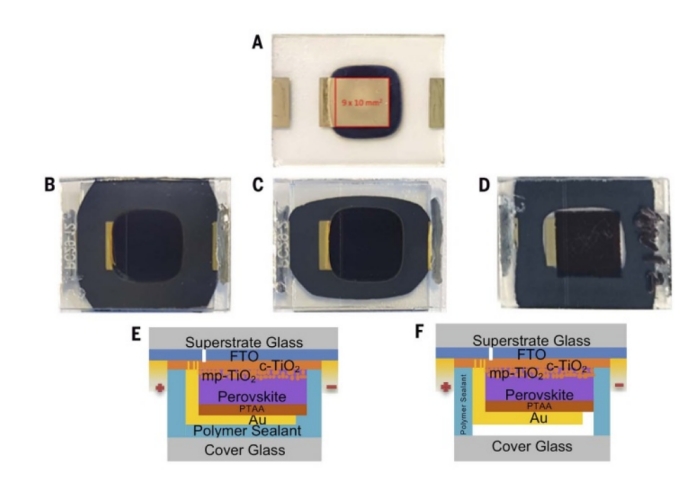

Schematic diagram of the structure of encapsulated perovskite solar cells

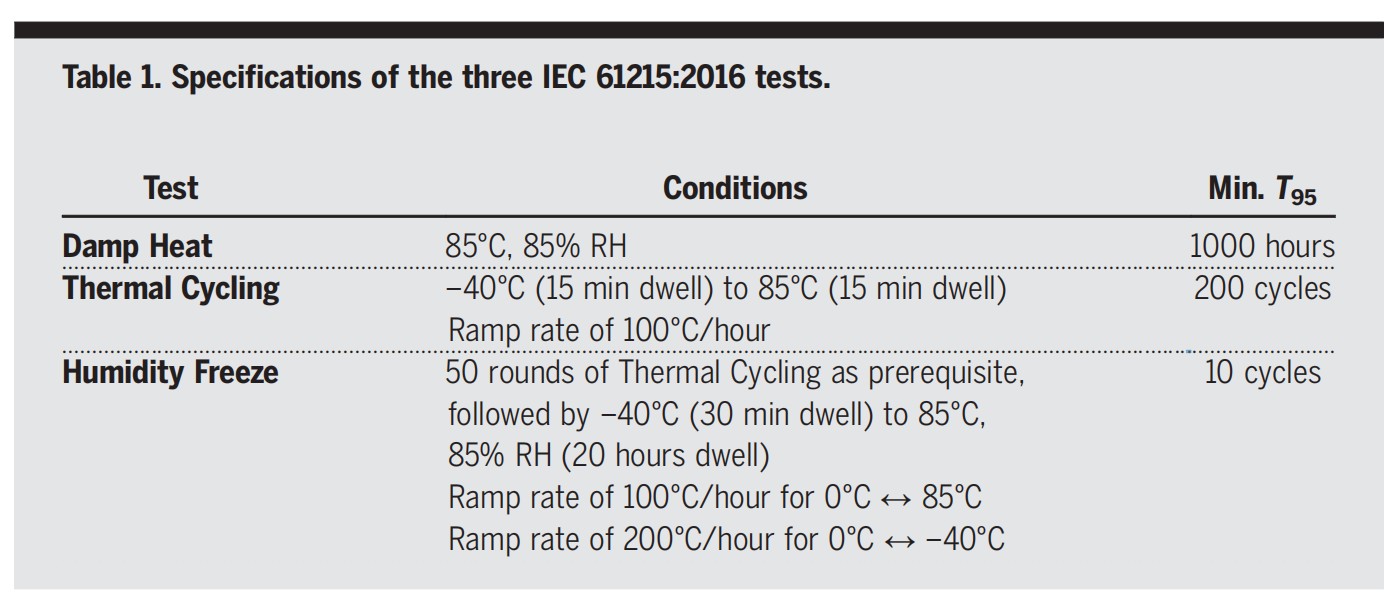

IEC 61215 Specific conditions for the three tests

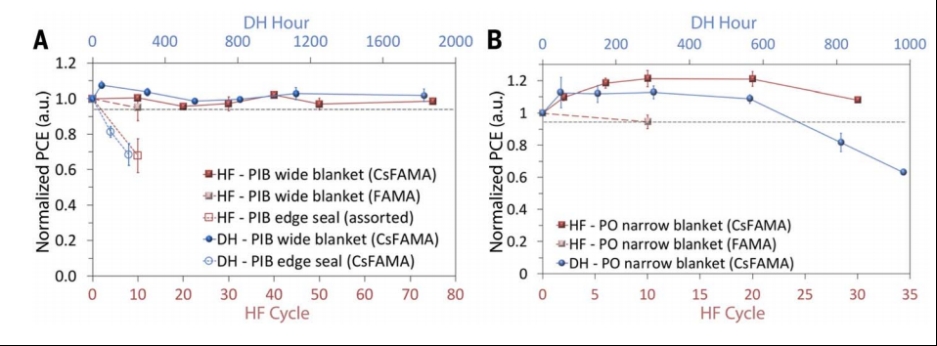

The photovoltaic conversion efficiency (PCE) of the encapsulated cells changes with the test time, including the duration in the DH test and the number of cycles in the HF test.



DH test: simulates the environmental conditions of high temperature and high humidity, which is essential for evaluating the durability of cells in tropical climates. The figure shows that the cells encapsulated with PIB wide blanket perform well in the DH test, while the edge-sealed cells degrade faster.

HF test: combines the DH and TC tests, which puts higher requirements on the packaging and material stability of the cells. The cells encapsulated with PIB wide blanket showed no performance degradation after 75 HF cycles, far exceeding the requirements of the IEC standard (10 cycles).

Perovskite solar cells encapsulated with PIB wide blankets show excellent stability in DH and HF tests, which is of great significance for improving the commercialization prospects of perovskite solar cells.

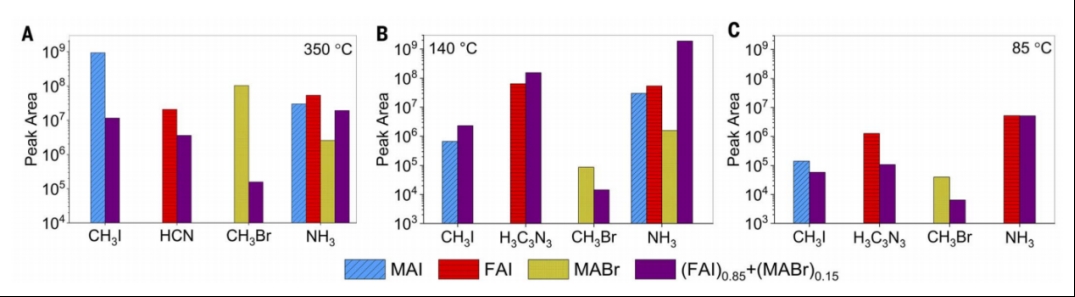

Decomposition products of organic perovskite precursors under different annealing conditions

Decomposition products of organic perovskite precursors under different annealing conditions



Under different temperature conditions, the main thermal decomposition products of organic perovskite precursors were successfully identified through GC-MS technology, including CH3I, CH3Br, and NH3. The type and amount of decomposition products vary with annealing temperature, indicating that the thermal stability of the perovskite precursor is significantly affected by temperature. Precursors containing bromine (Br) (such as MABr) are less susceptible to thermal decomposition relative to precursors containing iodine (I) (such as MAI and FAI), which may be related to the chemical properties of Br-.

For encapsulated perovskite solar cells, the encapsulation structure significantly reduces the release of decomposition products, indicating that encapsulation can effectively suppress the thermal decomposition of perovskite materials. It emphasizes the importance of packaging technology in improving the thermal stability and durability of perovskite solar cells, and provides experimental basis for further optimizing the packaging structure.

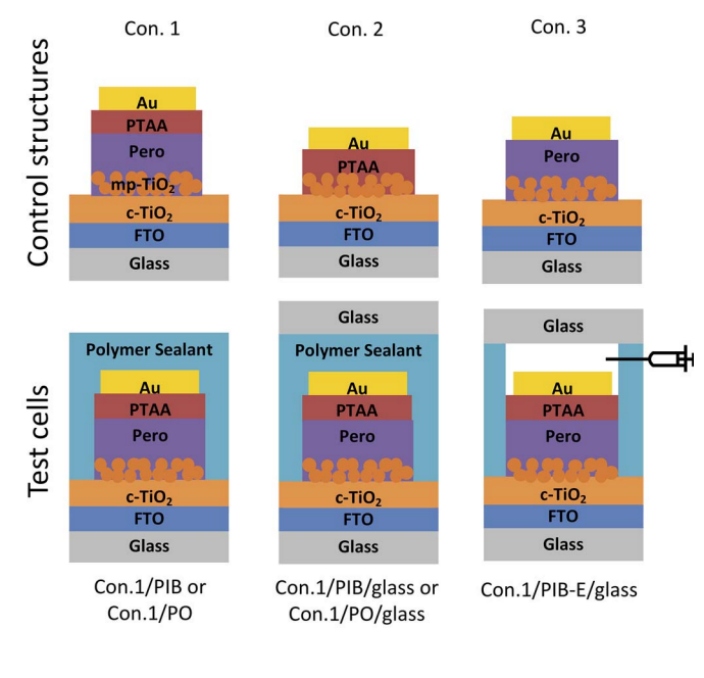

Schematic diagram of unpackaged and packaged test cells





Unencapsulated perovskite solar cell structure, including perovskite layer, hole transport layer (such as PTAA), electron transport layer and metal electrode, etc. Cells with different encapsulation methods, such as using polyisobutylene (PIB) or polyolefin (PO) as encapsulation materials, and possible glass cover layers.

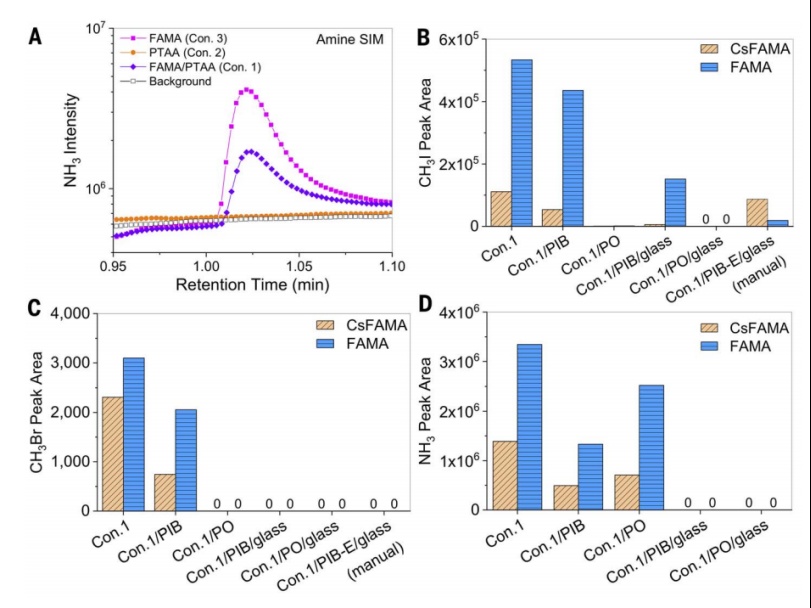

Decomposition products of unencapsulated and encapsulated perovskite solar cells after annealing at 85°C for 100 h



Some components in the unencapsulated structure will produce decomposition products, and encapsulation can effectively reduce the strength of the decomposition products. At the same time, different encapsulation methods (such as edge sealing) also have a certain effect on inhibiting the escape of decomposition products. In addition, by comparing different cells (such as CsFAMA and FAMA), we can further understand the impact of material composition on thermal stability. It is of great significance to evaluate the effectiveness of encapsulation solutions and study the stability of perovskite solar cells.



For perovskite solar cells to be commercialized, they must be able to withstand long-term environmental stress, including the influence of factors such as moisture, heat and light. These tests of IEC61215, as standard evaluation methods, are an important basis for judging whether perovskite solar cells can meet the requirements of commercial applications.
