All Black N-Type TOPCon 430W Bifacial PV Module

430W half cut solar panels
TOPCon  half cell solar panels

All Black N-Type TOPCon 430W Bifacial PV Module

  • Cell type :

    N Type
  • Module size :

    1722mm×1134mm×30mm
  • Thickness :

    2.0mm
  • Module weight :

    23.7KG
  • Output cable :

    4mm², cable length 300mm (can be customized)
  • Connector :

    MC4 compatible
  • Junction box :

    IP68, 3 bypass diodes
  • Frame :

    Anodized aluminium alloy





The Benefits of Solar Panels



    Using solar panels is a very practical way to produce electricity for many applications. The obvious would have to be off-grid living. Living off-grid means living in a location that is not serviced by the main electric utility grid. Remote homes and cabins benefit nicely from solar power systems. No longer is it necessary to pay huge fees for the installation of electric utility poles and cabling from the nearest main grid access point. A solar electric system is potentially less expensive and can provide power for upwards of three decades if properly maintained.

   Besides the fact that solar panels make it possible to live off-grid, perhaps the greatest benefit that you would enjoy from the use of solar power is that it is both a clean and a renewable source of energy. With the advent of global climate change, it has become more important that we do whatever we can to reduce the pressure on our atmosphere from the emission of greenhouse gases. Solar panels have no moving parts and require little maintenance. They are ruggedly built and last for decades when porperly maintained.

    Last, but not least, of the benefits of solar panels and solar power is that, once a system has paid for its initial installation costs, the electricity it produces for the remainder of the system's lifespan, which could be as much as 15-20 years depending on the quality of the system, is absolutely free! For grid-tie solar power system owners, the benefits begin from the moment the system comes online, potentially eliminating monthy electric bills or, and this is the best part, actually earning the system's owner additional income from the electric company. How? If you use less power than your solar electric system produces, that excess power can be sold, sometimes at a premium, to your electric utility company!

   There are many other applications and benefits of using solar panels to generate your electricity needs - too many to list here. But as you browse our website, you'll gain a good general knowledge of just how versatile and convenient solar power can be.

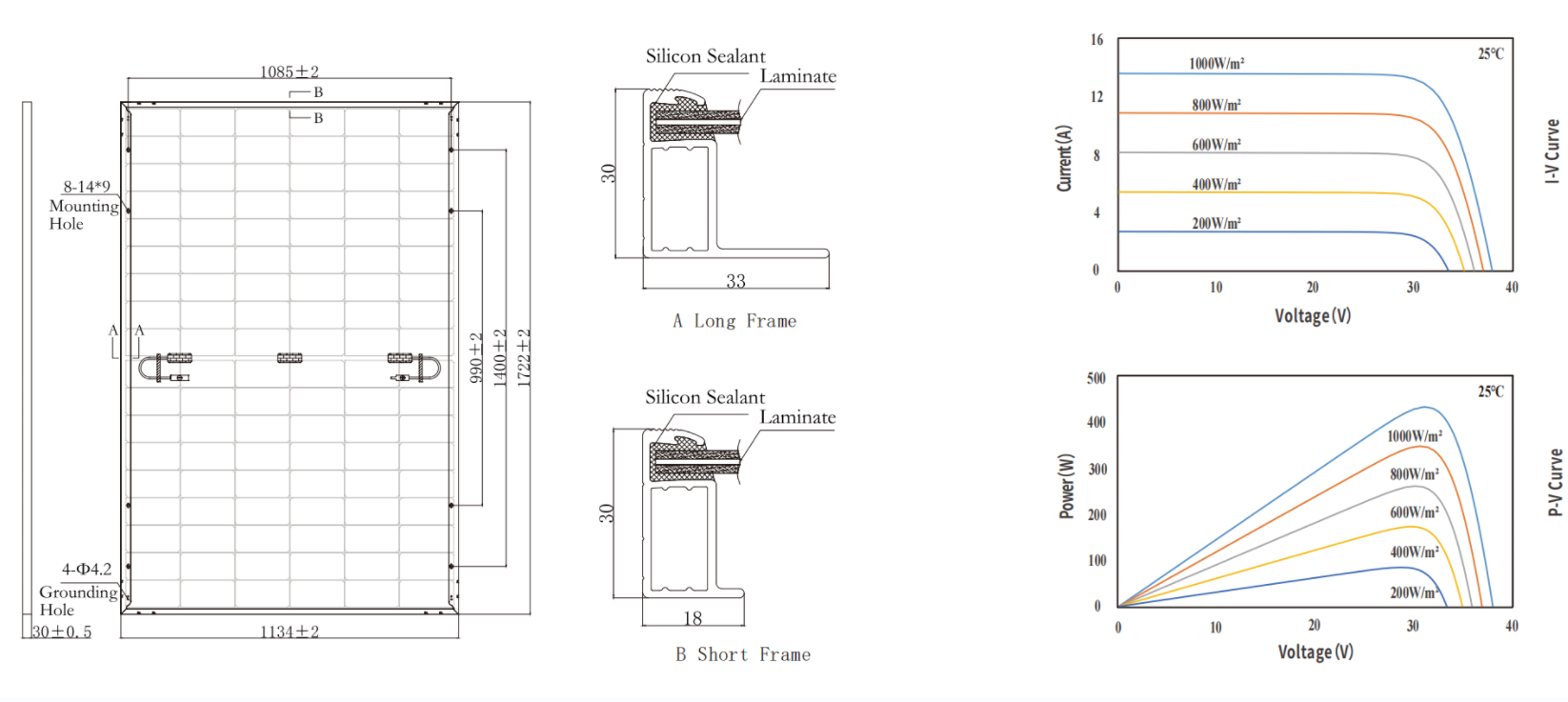

Engineering Drawing (mm )                                                                   Characteristic Curves(430W)






Electrical Parameters (STC * )



Nominal Max. Power(Pmax/W)
415
420
425
430
435
Open Circuit Voltage(Voc/V)
38.45
38.48
38.54
38.6
38.72
Short Circuit Current(Isc/A)
13.77
13.78
13.79
13.80
13.89
Operating Voltage(Vmp/V)
31.68
32.02
32.35
32.68
33.01
Operating Current(Imp/A)
13.10
13.12
13.14
13.16
13.18
Efficiency(%)
21.3
21.5
21.38
22.0
22.3
STC * : Irradiance = 1000 W/m², Cell Temperature = 25°C, AM = 1.5 .
Test condition is based on the front side





Electrical Parameters (NMOT * )

Nominal Max. Power(Pmax/W)
313.0
316.0
319.0
322.0
325.0
Open Circuit Voltage(Voc/V)
36.37
36.40
36.46
36.52
36.82
Short Circuit Current(Isc/A)
11.10
11.11
11.11
11.12
11.20
Operating Voltage(Vmp/V)
29.82
30.05
30.28
30.51
30.83
Operating Current(Imp/A)
10.50
10.52
10.54
10.56
10.54
NMOT *: Irradiance = 800 W/m², Ambient Temperature = 20°C, AM =1.5, Wind Speed = 1 m/s .
Test condition is based on the front side





Temperature Coefficients

Short Circuit Current(Isc)
+0.045%/℃
Open Circuit Voltage(Voc)
-0.25%/℃
Nominal Max. Power(Pmax)
-0.300%/℃
NMOT
42±2℃

All data contained in this datasheet is subject to change without notice.
